HyPlex® Minor Maintenance Kit

Name	Qty	Description

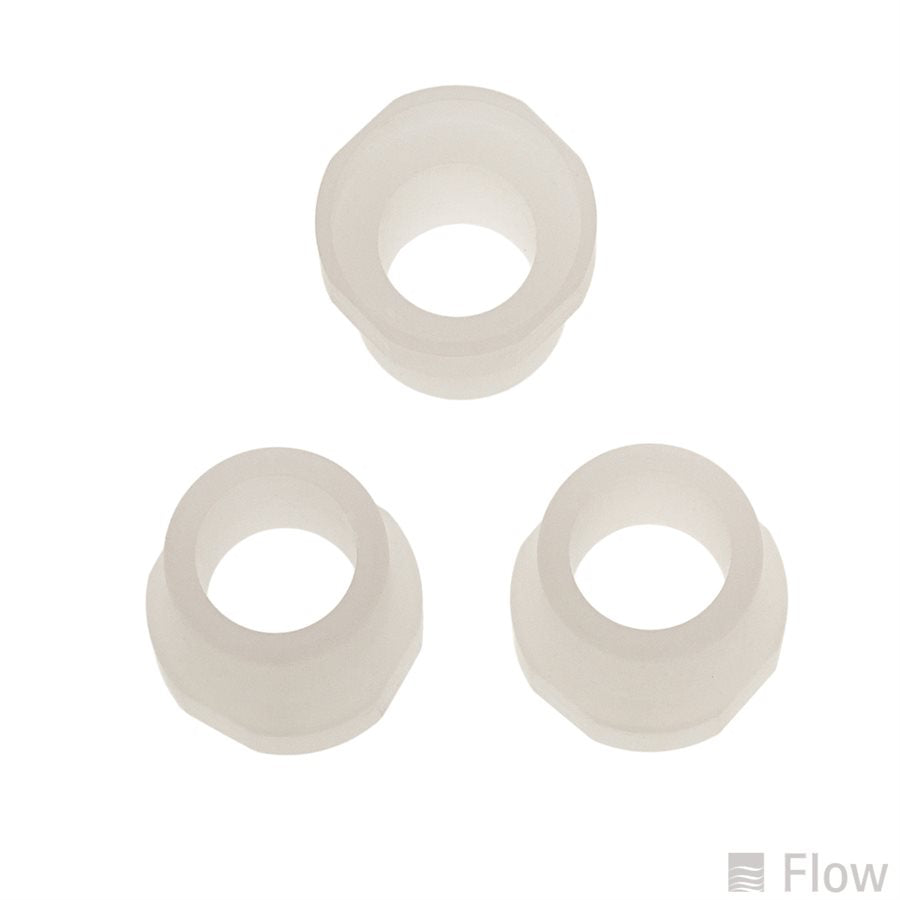

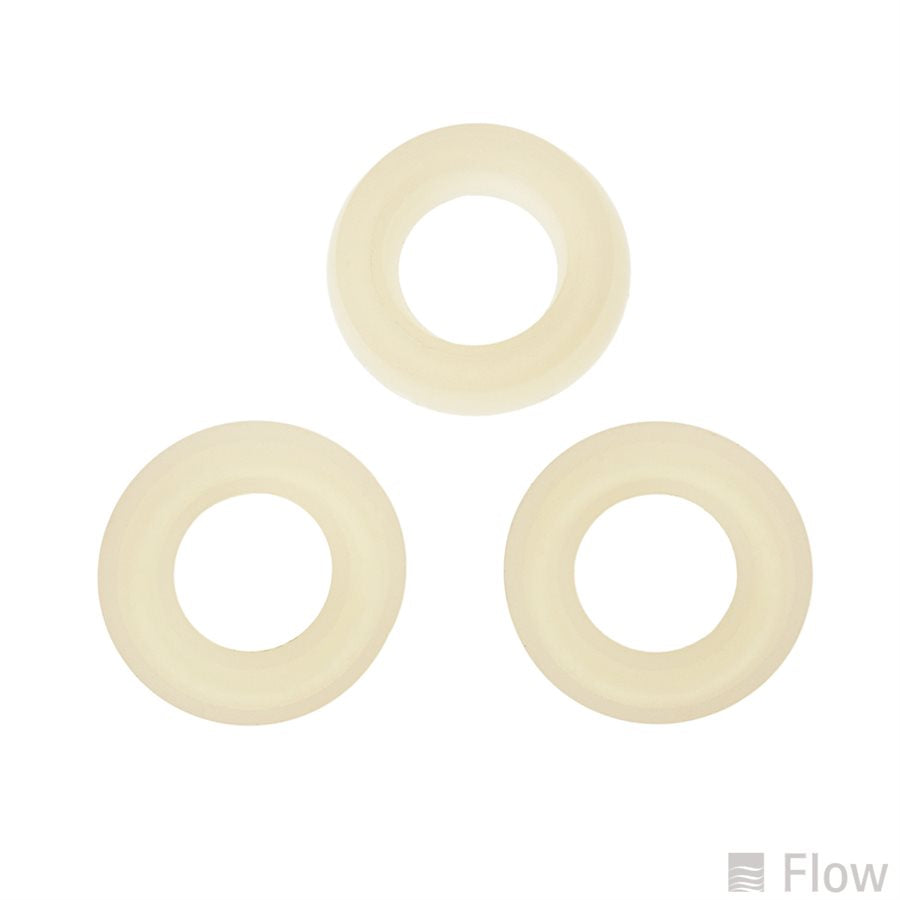

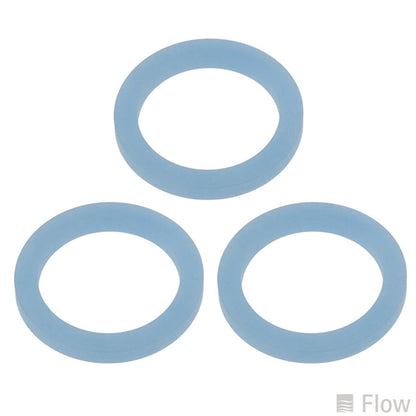

011051-1	3	SEAL;DYNAMIC;EAGLE;5/16 ID;HDS WHITE

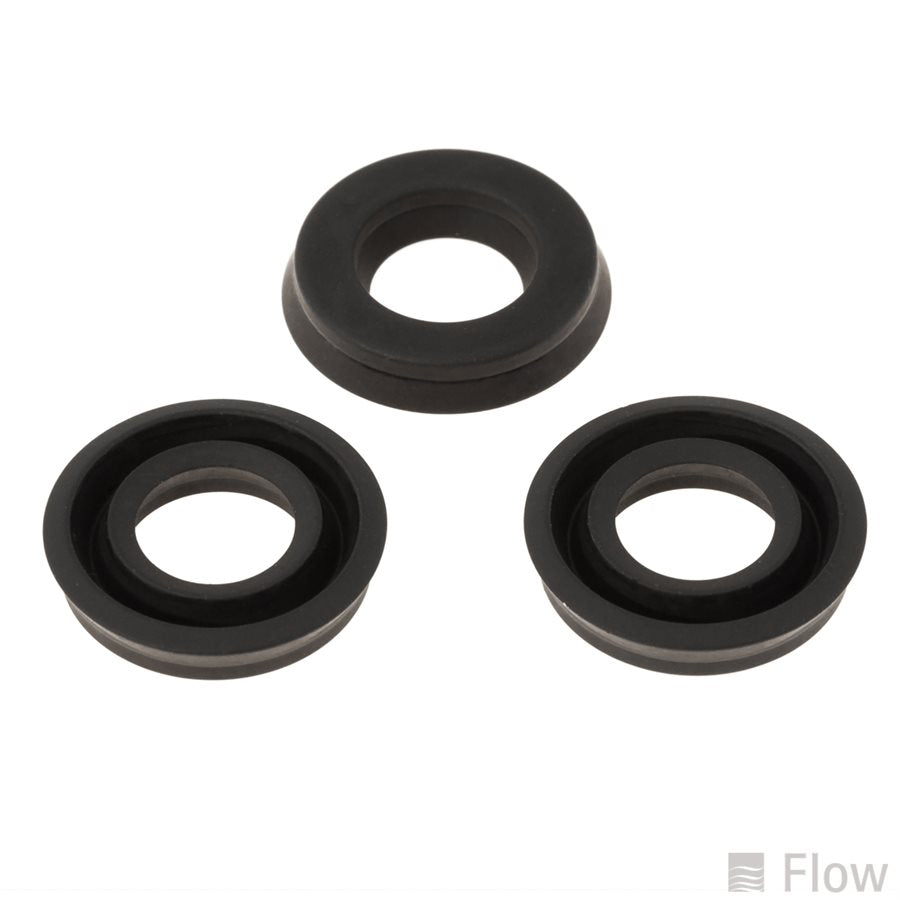

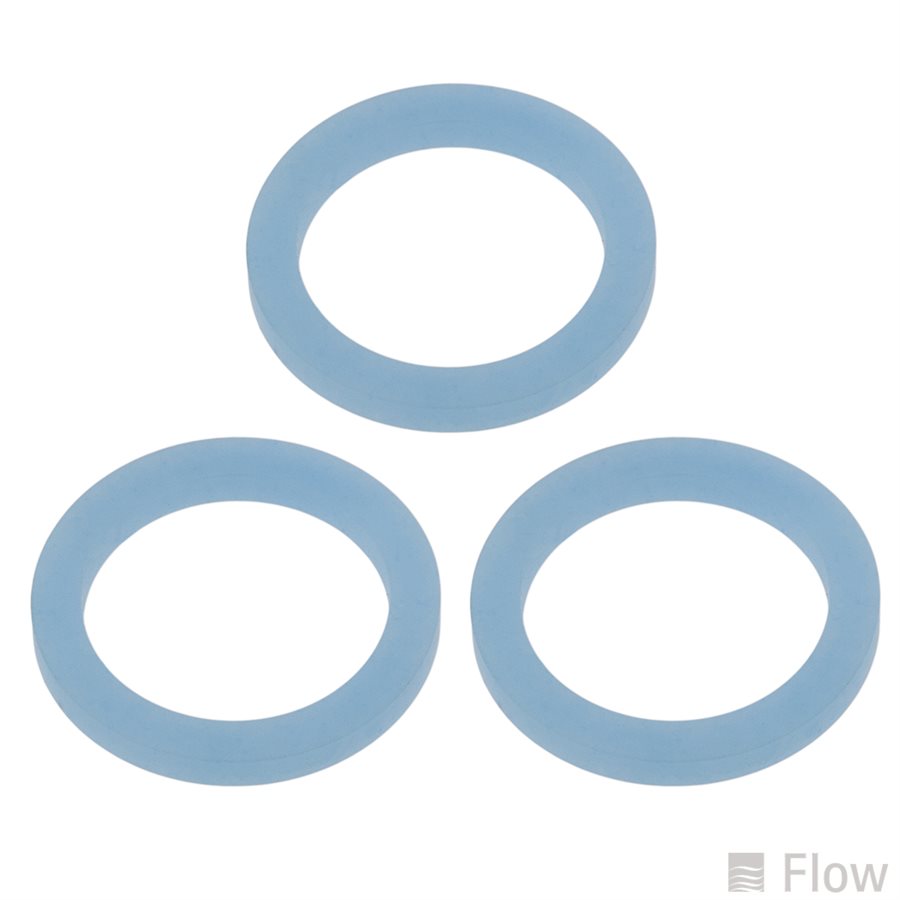

A-00621-33	3	SEAL;ROD;NA;DISOGRIN;7/16 ID;11/16 INCH OD;1/8 INCH

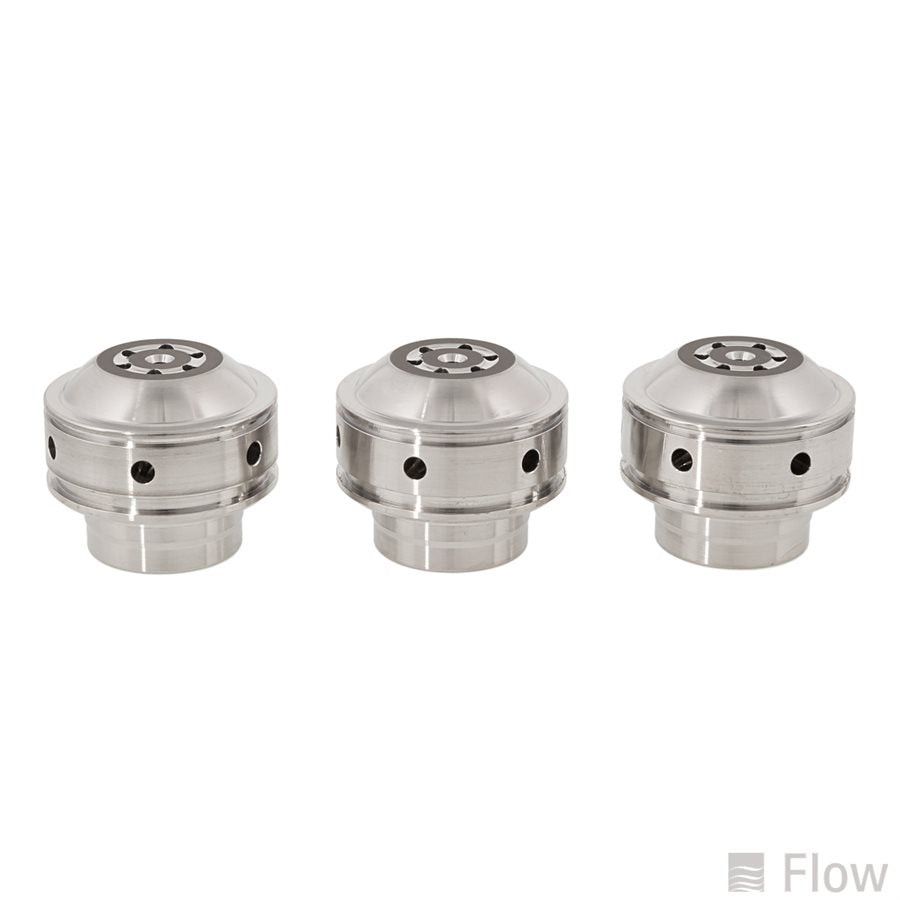

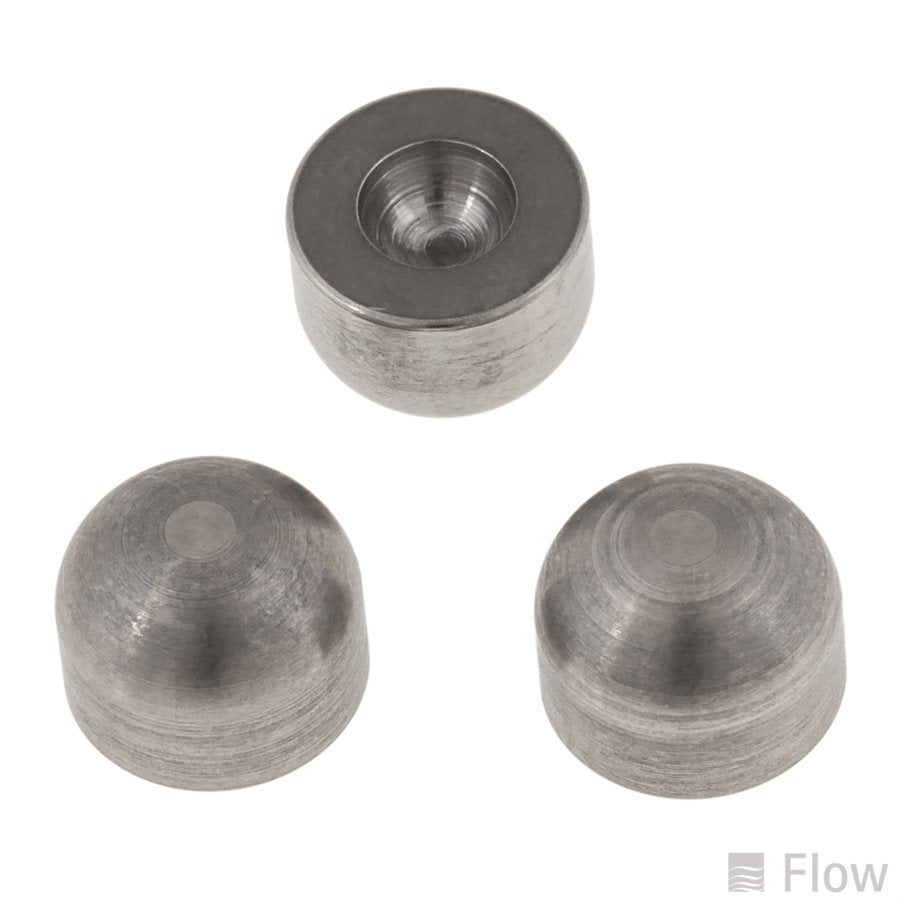

011042-1	3	POPPET;INLET;CHECK VALVE;EAGLE;STAINLESS STEEL
011040-1	3	GUIDE;NA;OUTLET POPPET;CHECK VALVE;EAGLE;NA
011039-1	3	POPPET;OUTLET;CHECK VALVE;HYPLEX;STAINLESS STEEL

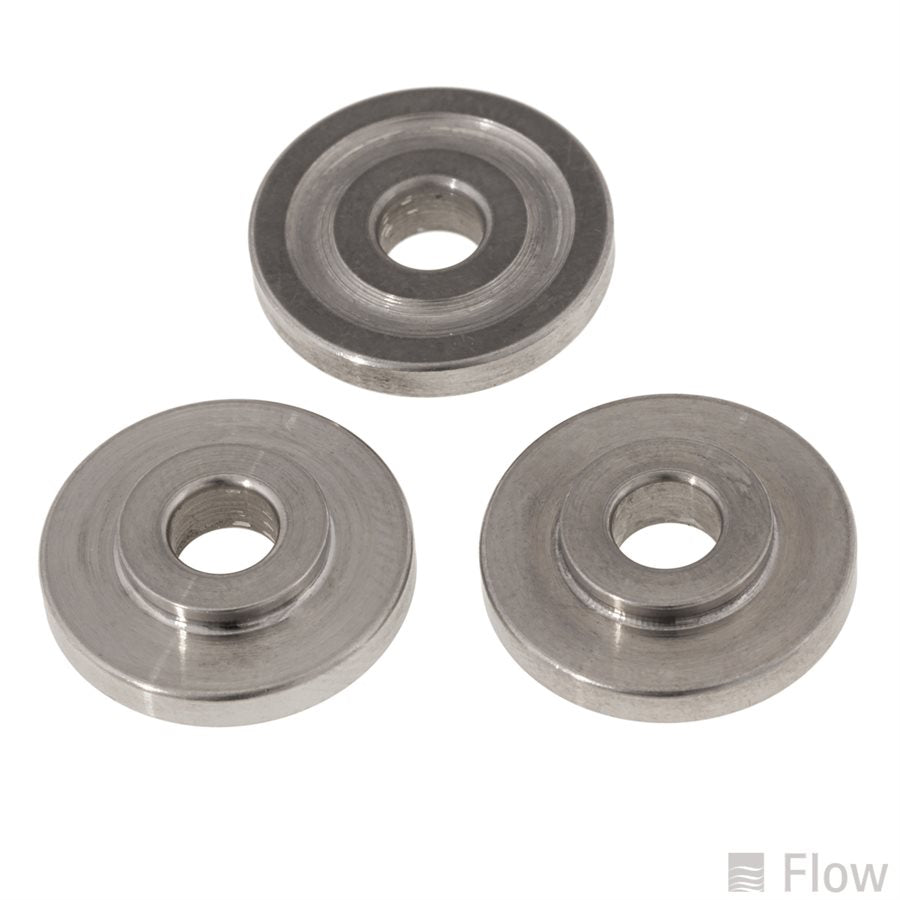

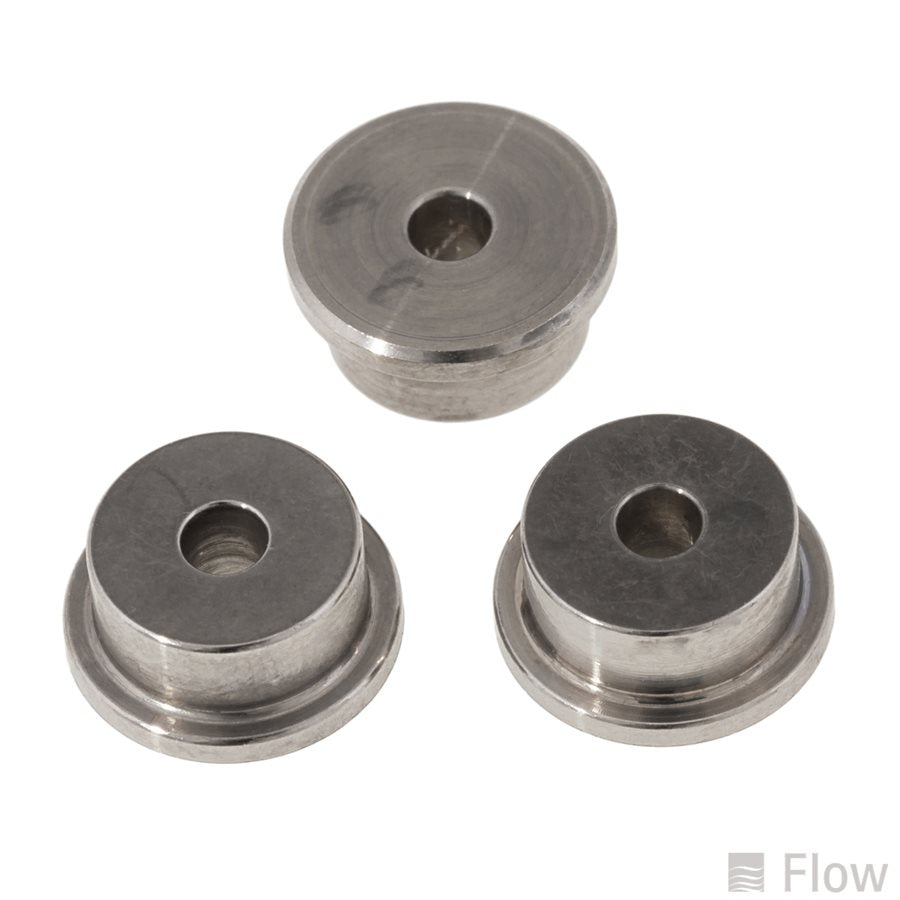

011041-1	3	SEAT;OUTLET;POPPET;EAGLE;STAINLESS STEEL
042145-1	1	POPPET/SEAT ASSEMBLY;PRESSURE CONTROL VALVE;HYPLEX HYBRID

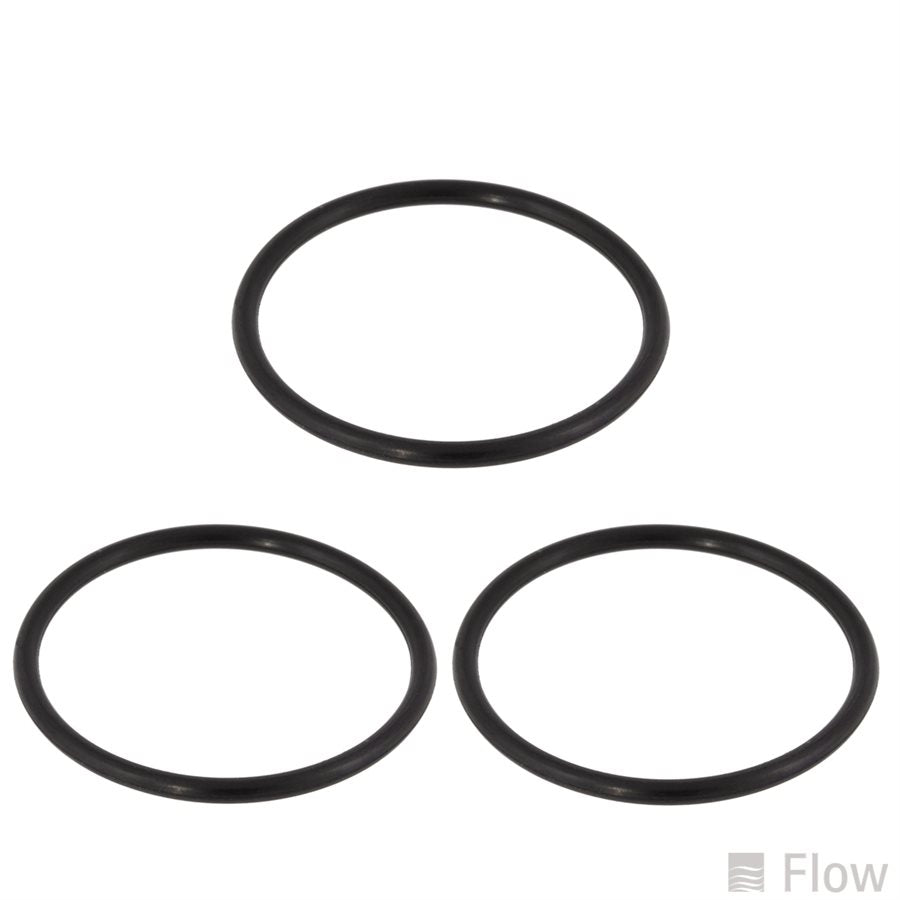

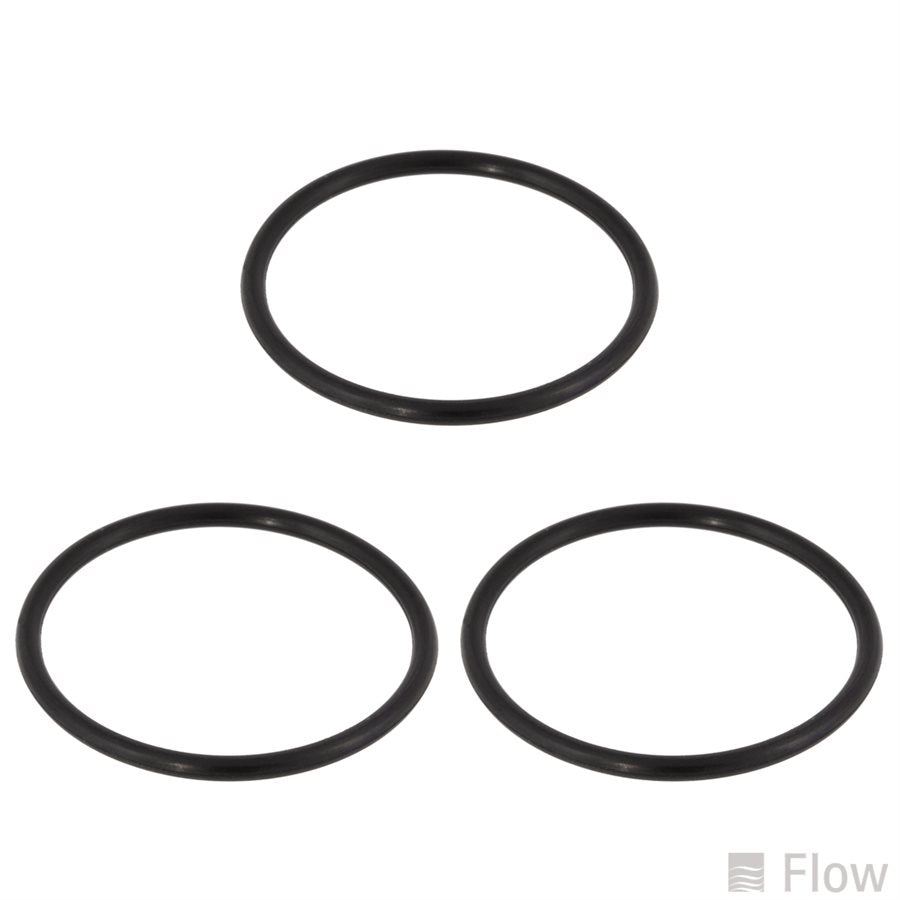

A-0275-033	3	O-RING;BUNA-N;70 (SHORE A);-033

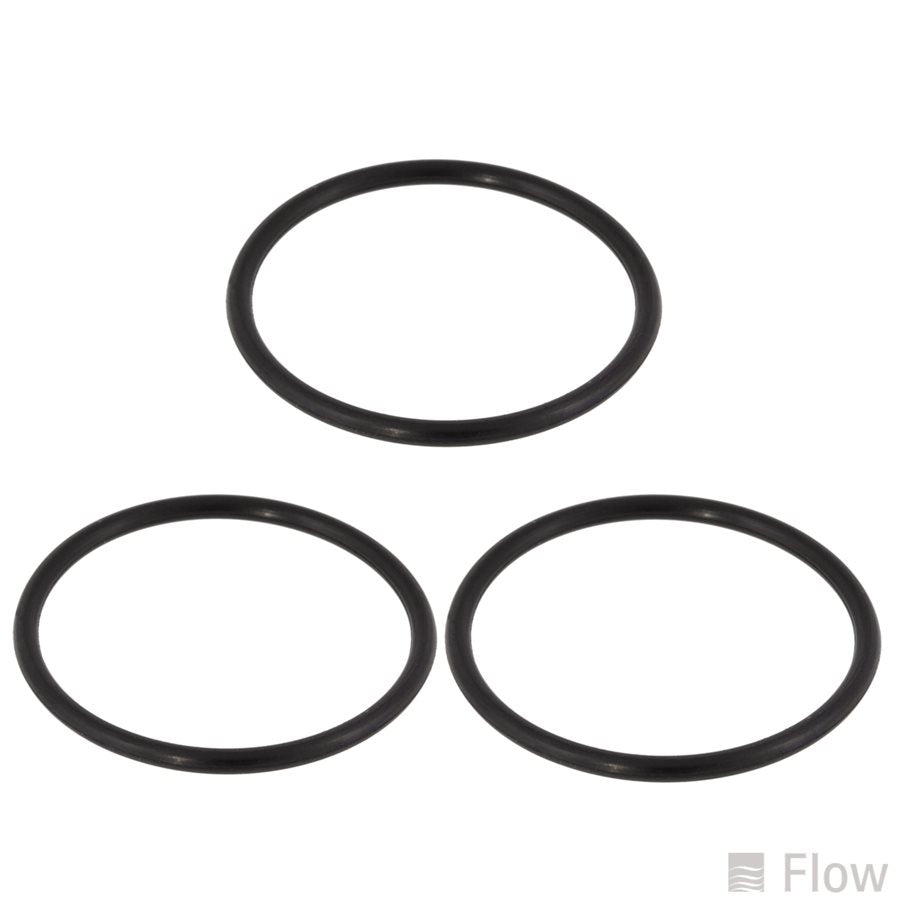

A-0275-025	3	O-RING;BUNA-N;70 (SHORE A);-025
A-1903	1	EMERY PAPER;320 GRIT;WITH ADHESIVE BACK

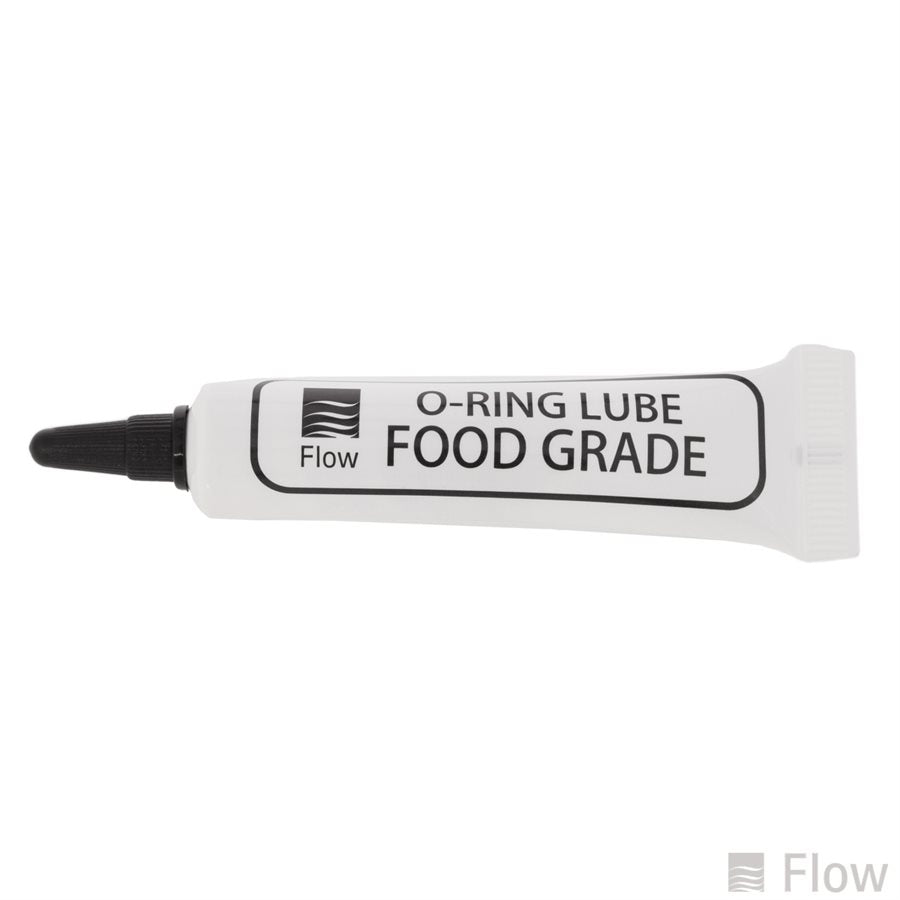

A-4689	1	GREASE;FOOD GRADE;1/4 OUNCE TUBE
SB-0168	1	SB;INSTALLING HYPLEX MINOR MAINT. KIT

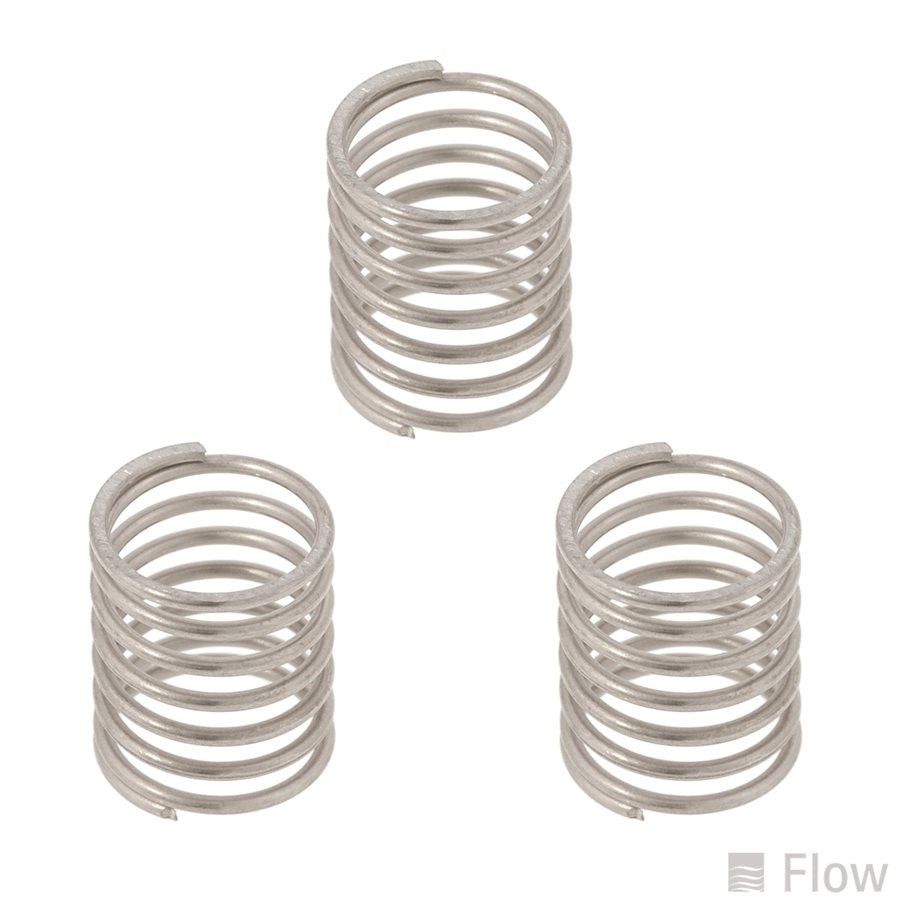

A-9223	3	SPRING;COMPRESSION;STAINLESS STEEL;NONE;.27 ID;.322 OD;.40 INCH;4.0 LBS/IN;CLOSED & GROUND

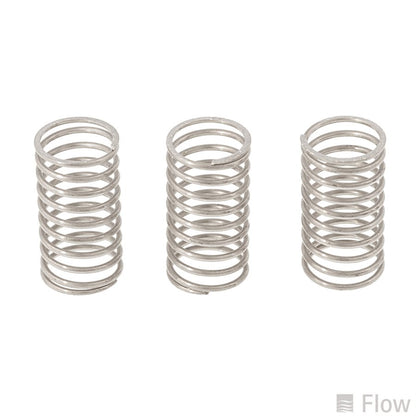

A-12219	3	SPRING;COMPRESSION;STAINLESS STEEL;NONE;.352 ID;.42 OD;.81 INCH;3.7 LBS/IN;CLOSED & GROUND

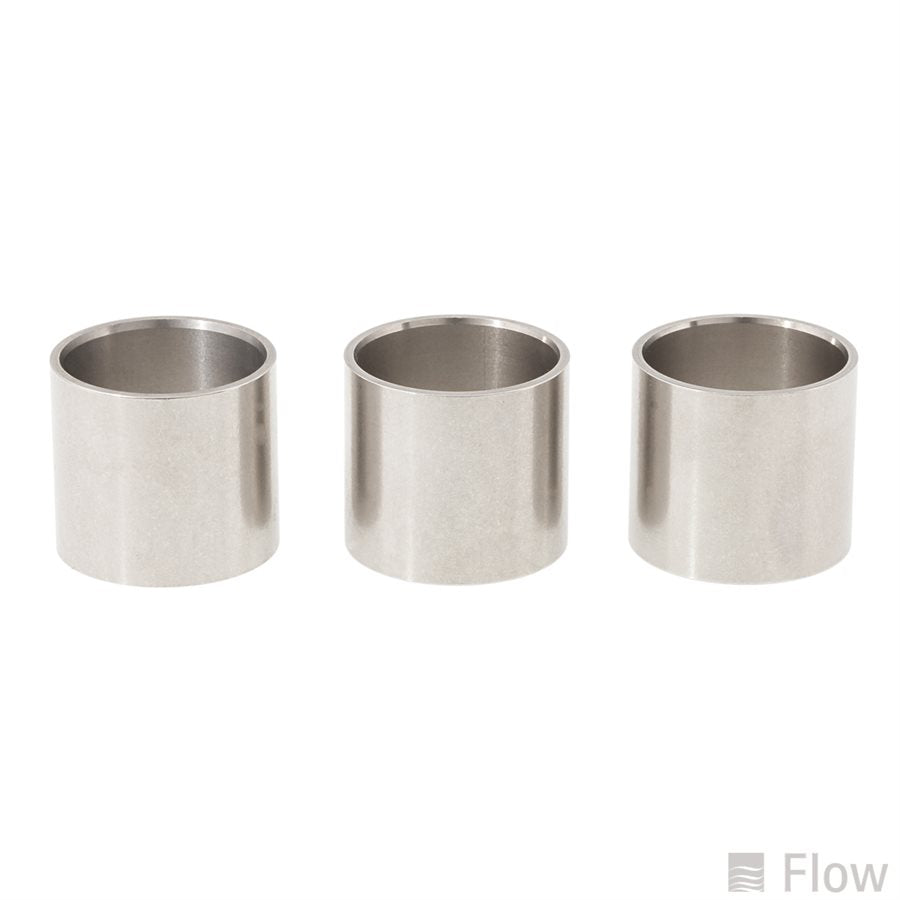

011350-1	3	SLEEVE;NA;FILLER TUBE;EAGLE
A-20386-1	2	LUBRICANT;ANTI-SEIZE;NA;5 GRAMS
012306-DWG	1	HIGH PRESSURE ASSEMBLY;55 KSI HYPLEX;NA;NA
A-00720-31	3	SEAL;ROD;NA;NITRILE;5/16 ID;9/16 OD;1/8 INCH

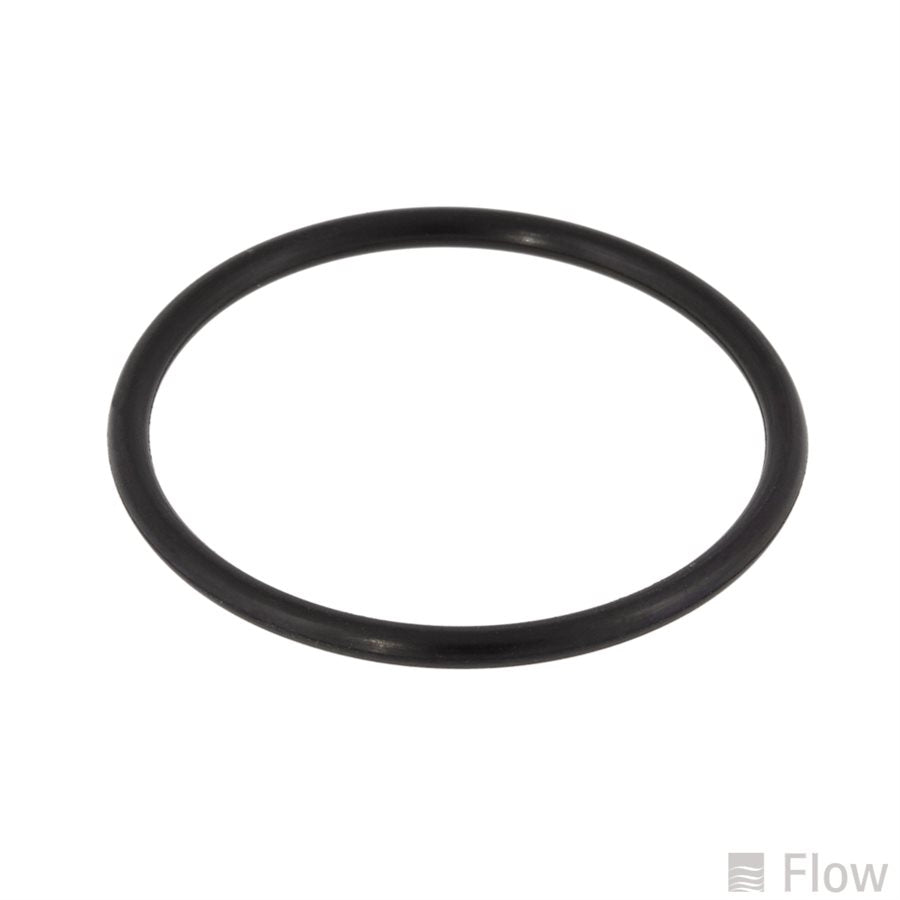

A-0275-119	1	O-RING;BUNA-N;70 (SHORE A);-119
A-0275-120	1	O-RING;BUNA-N;70 (SHORE A);-120

Pump Type

712101-1

Maint Level

Each
